START GATES for Freedom Track

Model GLM

Description

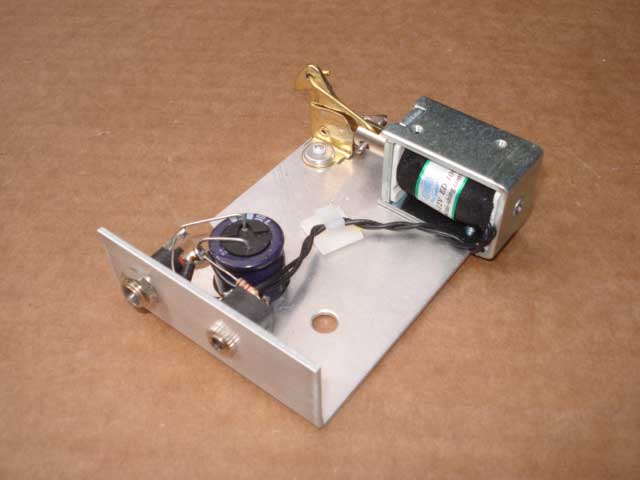

The GLM is a latch mechanism specifically designed for the Freedom Pinewood Derby track, made by MicroWizard. It operates by remote control to start your race with nobody near the track. The GLM mounts with a single 1/4"-20 screw included. The electronics portion of the unit is integrated with the actuating mechanism on a single substrate.

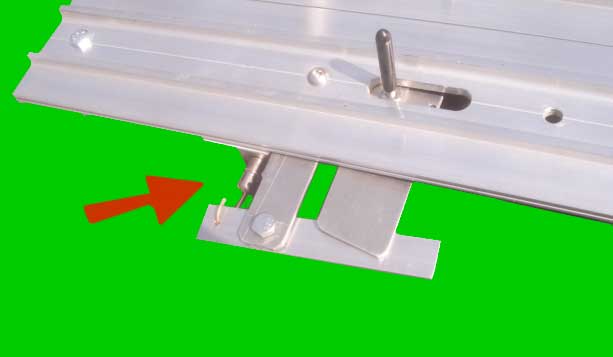

The actuating component is a linear solenoid which pulls a latch engaged with the Freedom's gate. You must mount a small metal piece on the Freedom gate to act as a strike plate, but this is quite easy.

Detailed instructions on mounting the GLM are found HERE.

Attach power and triggering cables, and you are ready to race.

Specifications

Weight: 6 ounces, power supply 15.5 ounces

Dimensions H 2.0", W 4.6", L 2.2"

Power: 24VDC, 600 ma. (power supply included)

Triggering the GLM

The Model GLB may be activated in three different ways:
Pushbutton Switch Model PB-1   $19
Light Tree Model LT3   $159
Serial Control Interface, Model SCI  $39

Custom Wiring Available. If you have special requirements, please call to discuss.

One often requested modification is the ability to trigger the light tree from within Derby Management sofware in addition to the standard infrared remote control. When the light sequence gets to green, the Light Tree in turn activates the gate. This modification involves work on the Light Tree, the Gate, and and the interconnecting cable, and adds $20.
