Cubmobile and Soap Box Derby Racing!

* Standard Judge capabilities in a small enclosure: 5.6"H x 3.3"W x 1.5"D

* Cabling available for Start Line or Finish Line use. Your choice.

* Bright LEDs easily interpreted from 150 feet or more

* Uses pneumatic tubes and pressure switches for finish line sensors

* Uses Magnetic Switch for start line sensor

* May be used with or without Computer Option. Your choice

* Computer message will display elapsed time to .0001 second resolution.

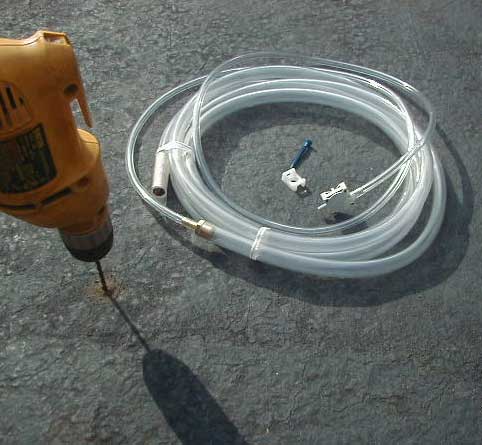

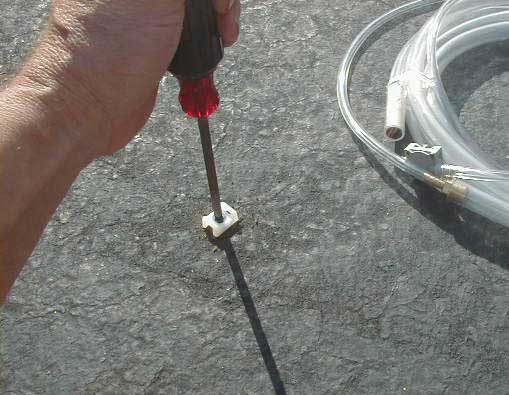

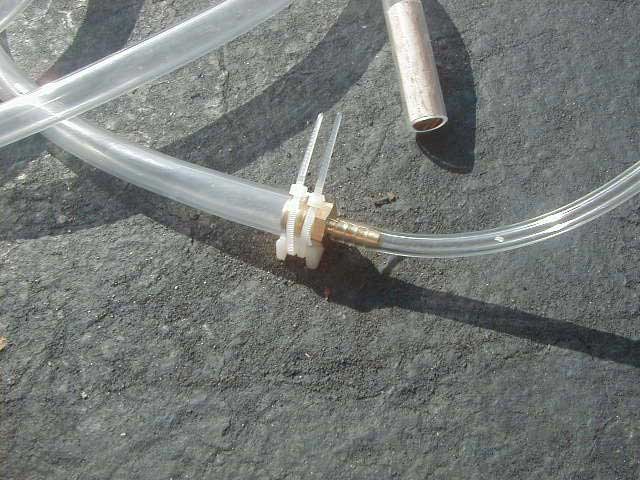

Secure the hose to the tie mount using tyraps at the hose reduction fitting.

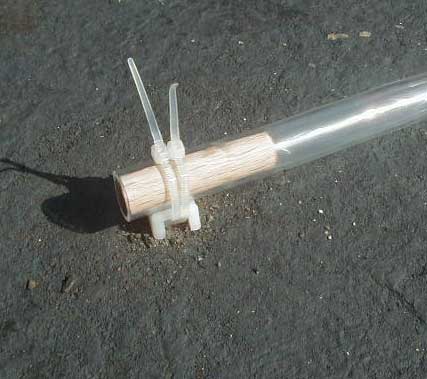

Stretch the hose across the lane, and repeat for the outside lane edges.The outer hose end is blocked with an oak dowel.

Set up tires, hay bales or other safe lane definition. And have a Blast!

Bright LED Indicators on enclosure can be interpreted from 150 feet with unaided eye.

Win Car: Steady Light

Place Car : Flashing Light

Custom Configurations

The Cubmobile Judge on the left is equipped with Computer Option, and mounted on a high visibility PVC strip attached to a sharp aluminum stake. The Judge attaches to the PVC with Velcro. The operator positioned himself at the start line with his laptop, and ran his event using Grand Prix Race Manager software.

Other configurations are available. Let us know your ideas and we will work with you to design the best sytem for your situation. Would you rather be at the start line, or the finish line? How many lanes? You can save money by taking care of the mounting details yourself. The tubing and fittings are common parts available at Home Depot, and you can save money by picking them up locally. If you have cable on hand that could be used for either the start signal or the communication signals, we will coordinate the connectors, and reduce the price even more. These items constitute a significant part of the Cubmobile Judge costs, especially shipping.
